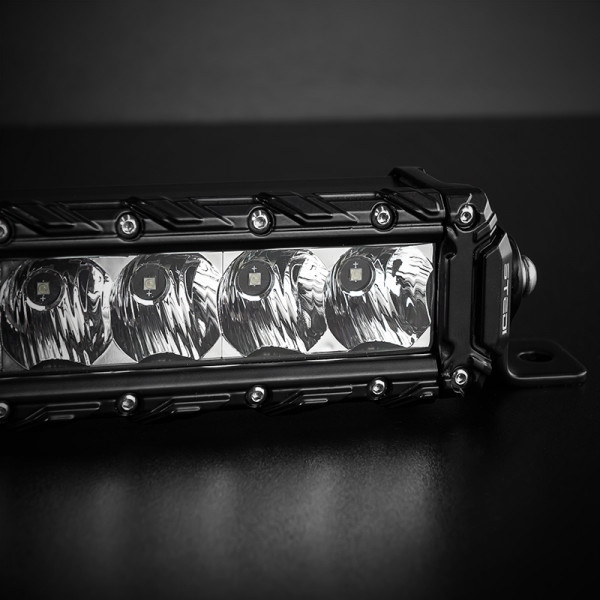

Stedi ST3K 51.5 Inch 50 LED Slim Light Bar

Introducing our all-new ST3K low profile LED bar range.

Built on our hugely successful ST(X)K LED & reflector platform. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.

MARKET LEADING PERFORMANCE.

ST3K-50L features 50 of OSRAM’s® finest OSLON® LED, selected for unrivaled efficiency.

10 Flood + 30 Spot + 10 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 712m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Ultra-Low 52mm profile without the side brackets & 54mm with side brackets!

Includes our Easy Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems

Backed by a 5 Year Replacement Warranty.

SPECIFICATIONS

LED	50 x Osram Oslon White
RAW LUMEN	24,600Lm
OPERATING VOLTAGE	10-30V DC
IP RATING	IP68
CURRENT DRAW	11.1A @ 13.6v
COLOUR TEMPERATURE (CCT)	5700 Kelvin
HOUSING MATERIAL	Aluminium Extrusion & Cast
LENS	GE™ Lexan
MOUNTING BRACKET	Powder Coated 3mm Stainess Steel
BOLTS AND FITTINGS	3 Series Stainless Steel
BEAM TYPE	Flood Spot Combo
LIFE SPAN	50,000 Hours
WEIGHT	4.250
OPERATING ENVIRONMENT	-40 - +50° Celsius

WHAT’S IN THE BOX

• ST3K 51.5inch LED LIGHT BAR
• Stainless Fasteners
• Stainless Steel Side Mounting Brackets
• 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
• H4 and HB3 adapters included
• Wiring Instructions
