Safari VSPEC Snorkel for Nissan Navara D22 2002+ 3.0L & 2.5L Diesel - 01/2007+ Turbo Diesel
Single Battery Models only
The SS726HF Nissan Navara 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of D22 Dual Battery 2.5L Diesel engines.
With the huge air flow demands of each engine in the Nissan D22 Dual Battery 2.5L Diesel Navara, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Nissan Navara design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Nissan Navara 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan Navara snorkel breezes through the toughest off-road conditions on the planet.
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Snorkel fitting guide with an accurate template for assisting with installation.
|

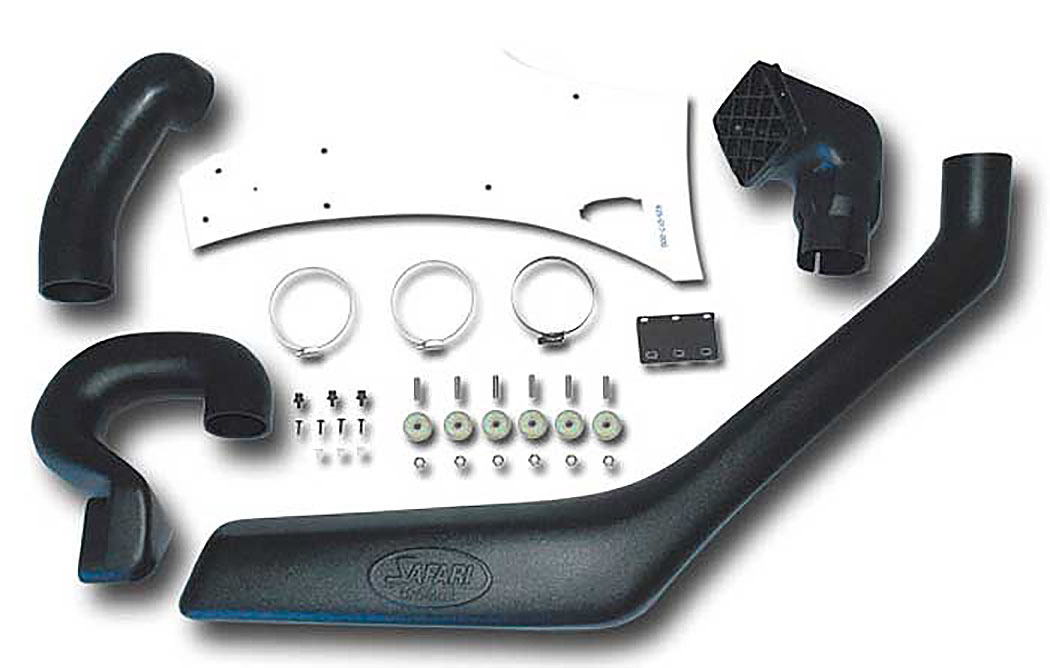

ITEM |
PART NO. |
DESCRIPTION |
QTY |
|---|---|---|---|
|
1 |
425-133-000 |
BODY - SNORKEL |
1 |
|
2 |
000-135-050 |
3” AIR RAM ASSEMBLY |
1 |
|
3 |
425-024-000 |
HOSE - AIR ENTRY |
1 |
|
4 |
425-123-000 |
DUCT - CONNECTING |
1 |
|
5 |
425-032-000 |
BRACKET - UPPER MOUNTING |
1 |
|
6 |
000-002-100 |
BOLT - HEX 6mm x 1.0mm x 14mm |
3 |
|
7 |
000-951-300 |
SCREW - S/T 4.2mm x 16mm |
4 |
|
8 |
000-960 |
CLIP - BODY (PLASTIC) |
3 |
|
9 |
000-110 |
STUD - S/S 8mm x 1.25 x 25mm O/L |
6 |
|
10 |
000-311 |
WASHER - BODY 8mm x 30mm |
6 |
|
11 |
000-205 |
NUT - NYLOC 8mm x 1.25mm |
6 |
|
12 |
000-908 |
CLAMP - HOSE 70/90mm |
2 |
|
13 |
425-017-000 |
TEMPLATE |
1 |
|
14 |
000-918/B |
HOSE CLAMP - SIZE 48 (BLACK) |
1 |
(SS725HF)
| SKU | SS725HF |
| Brand | Safari 4x4 |
| Shipping Weight | 5.3000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.200m |
| Shipping Length | 1.290m |
| Shipping Cubic | 0.108360000m3 |
