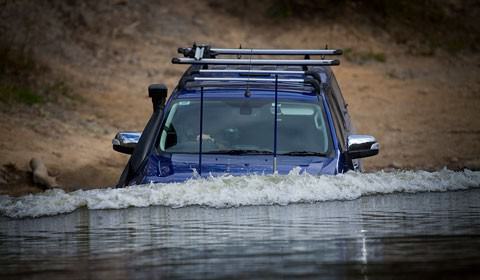

The SS165HF GM/Isuzu D-Max, Rodeo/Campo Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of all RA LX & LT Models 3.0L Diesel engines.
With the huge air flow demands of each engine in the GM/Isuzu D-Max, Rodeo/Campo RA LX & LT Models 3.0L Diesel , Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel GM/Isuzu D-Max, Rodeo/Campo design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari GM/Isuzu D-Max, Rodeo/Campo 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the GM/Isuzu Rodeo/Campo snorkel breezes through the toughest off-road conditions on the planet.
*Does not suit single cab models
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your D-Max, RA LX & LT Models 3.0L Diesel engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive GM/Isuzu Rodeo/Campo 4WD Snorkel fitting guide with an accurate template for assisting with installation.
ITEM |
PART NO. |
DESCRIPTION |
QTY |
---|---|---|---|
1 |
735-133-000R |
BODY - SNORKEL |
1 |
2 |
000-135-650 |
3 1/2" AIR RAM ASSEMBLY |
1 |
3 |
730-032-000 |
BRACKET - UPPER MOUNTING |
1 |
4 |
000-002-100 |
BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) |
3 |
5 |
000-958-350 |
POP RIVET - 4.8mm x 14mm |
3 |
6 |
735-124-000 |
INNER DUCT (SS165HF) |
3 |
7 |
000-110 |
STUD - S/S - 8mm x 1.25 x 25mm |
3 |
8 |
000-311-300 |
WASHER - BODY - 8mm x 30mm |
3 |
9 |
000-205-300 |
NUT - NYLOC - 8mm x 1.25mm |
3 |
10 |
000-951-300 |
SCREW - S/T - 4.2mm x 16mm |
1 |
11 |
735-024-000 |
HOSE - AIR ENTRY |
1 |
12 |
000-909 |
CLAMP - HOSE - 80/100mm |
1 |
13 |
000-908 |
CLAMP - HOSE - 70/90mm |
1 |
14 |
000-953-032 |
RUBBER EDGING - 320mm Long |
1 |
15 |
000-914/B |
CLAMP - HOSE - No. 56 (BLACK) |
1 |
16 |
735-017-000 |
TEMPLATE |
1 |
(SS165HF)
SKU | SS165HF |
Brand | Safari 4x4 |
Shipping Weight | 5.3000kg |
Shipping Width | 0.420m |
Shipping Height | 0.200m |
Shipping Length | 1.290m |
Shipping Cubic | 0.108360000m3 |
