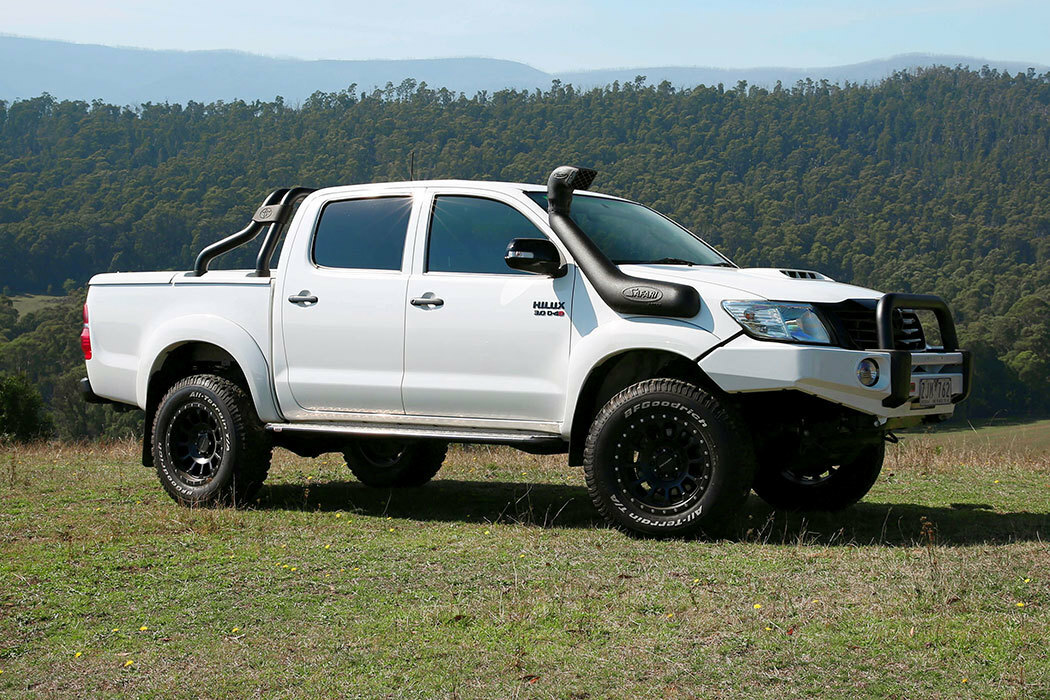

Safari VSPEC Snorkel for Toyota Hilux 04/2005 to 06/2015
The Toyota Hilux 25 Series Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly o fHilux engines.
With the huge air flow demands of each engine in the Toyota Hilux, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Toyota Hilux design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Toyota Hilux 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Toyota Hilux 25 Series snorkel breezes through the toughest off-road conditions on the planet.
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your Hilux
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Toyota Hilux 4WD Snorkel fitting guide with an accurate template for assisting with installation.
|
ITEM |
PART NO. |
DESCRIPTION |
QTY |
|---|---|---|---|
|
1 |
320-133-000 |
BODY – SNORKEL |
1 |
|
2 |
000-135-650 |
3 ½" AIR RAM ASSEMBLY |
1 |
|
3 |
320-032-000 |
BRACKET - UPPER MOUNTING |
1 |
|
4 |
000-002-100 |
BOLT - HEX 6.0mm x 1.0 x 14mm (SEMS) |
2 |
|
5 |
000-951-300 |
CREW – S/T 4.2mm x 16mm |
3 |
|
6 |
000-960 |
BODY CLIP – PLASTIC |
3 |
|
7 |
320-024-200 |
HOSE – AIR ENTRY |
1 |
|
7a |
000-908 |
CLAMP - HOSE 70/90mm |
1 |
|
7b |
000-910 |
CLAMP - HOSE 90/110mm |
1 |
|
8 |
000-110 |
STUD - S/S 8mm x 1.25 x 25mm - O/L |
6 |
|
9 |
000-311 |
WASHER - BODY 8mm x 30mm |
6 |
|
10 |
000-205 |
NUT - NYLOC 8mm x 1.25mm |
6 |
|
11 |
320-017-000 |
TEMPLATE |
1 |
|
12 |
000-914/B |
HOSE CLAMP - SIZE 56 (BLACK) |
1 |
(SS120HF)
| SKU | SS120HF |
| Brand | Safari 4x4 |
| Shipping Weight | 5.3000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.200m |
| Shipping Length | 1.290m |
| Shipping Cubic | 0.108360000m3 |
