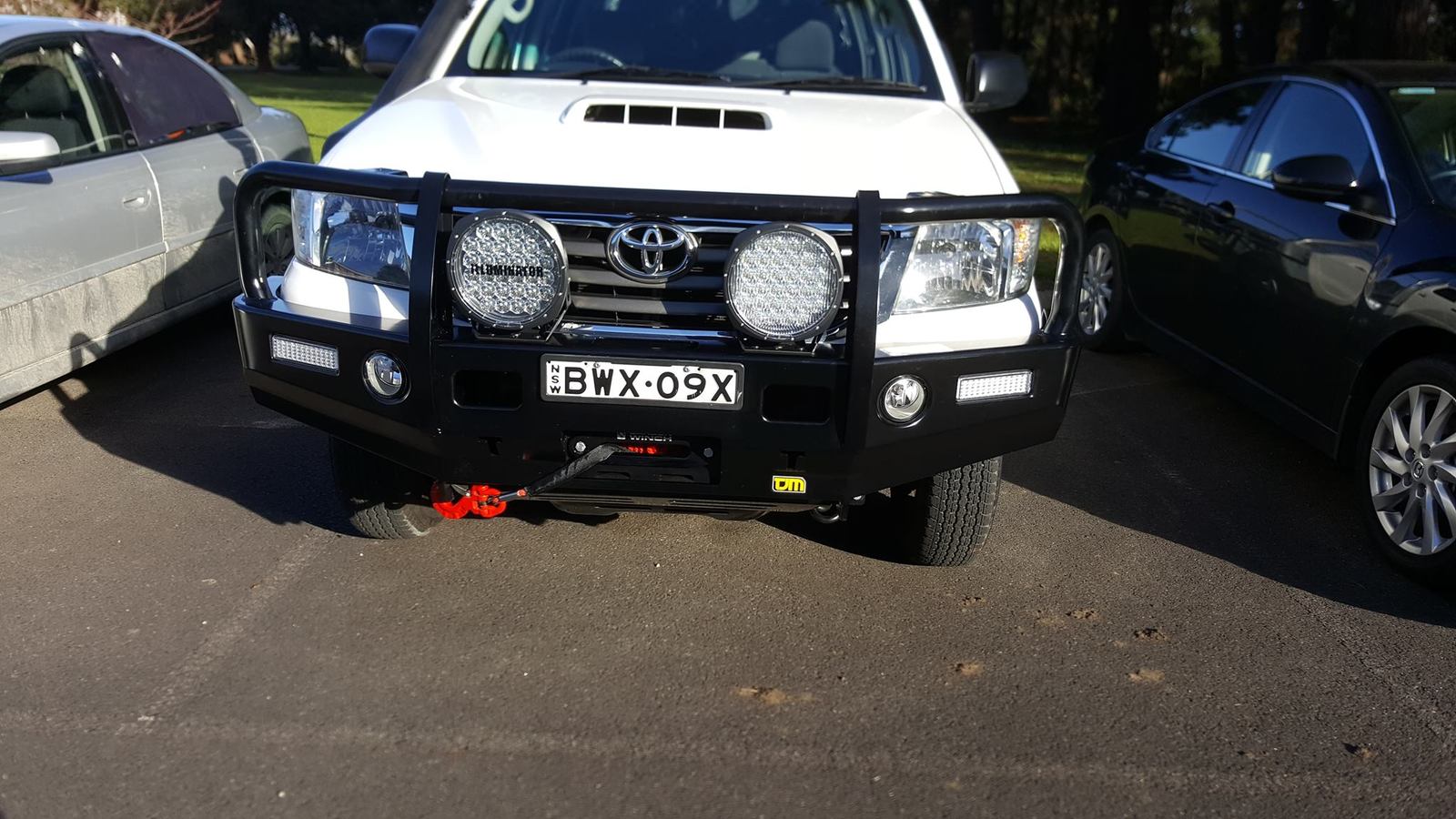

Carbon Winches 12K 12,000Lb Electric winch with Red synthetic rope and Hook
Version 2 Out of stock - New Version 3 in stock now !!
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
"Backed by KPD Industries, we have spent 4 years developing this product to the point where it is now. We are highly confident it will fit your needs whatever they may be. We have spent time making sure that the little things have been addressed, fully sealed wireless receiver units, not just a split electronics box, rotating ring gear clutch making freespool engagement as easy as it can get, seals on all joins on the winch, making it as resistant to water and dust ingress as possible."
• Designed by KPD Industries for our harsh Aussie conditions
• Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms.
• 12000lb fast line pull 216:1 planetary gearset ratio
• 6.2HP series wound electric motor
• 3 position solenoid box mounting bracket
• Snatch block pulley included FREE (Greasable pin)
• Wireless remote control unit with lanyard- FULLY SEALED RECIEVER UNIT
• Rotating ring gear clutch for easy low drag freespool
• Electroplated planetary gearsets for long life
NO FUSS WARRANTY -
• 5 year electrical warranty on motor / solenoid unit
• Limited lifetime gear train warranty
• Supported nationwide from Melbourne. Fast support via phone or email.
Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.
SPECIFICATIONS
Part number: CW-12K
Rated line pull: 12000 lbs, (5450 kg) single-line
Motor: 12V DC 6.2HP series wound motor
Remote Control: Remote Switch, 12’ (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 216:1
Clutch (freespooling): Rotating Ring Gear
Brake: Full load automatic brake installed in the motor housing end plate. No heat on drum.
Drum Diameter/Length: 2.5’’/8.8’’ (64mm/224mm)
Synthetic Rope: 24m x 10mm diameter
Fairlead: CNC billet alloy black anodised with laser etched logo
Recommended Battery: 650 CCA minimum for winching
Mounting Bolt Pattern: 10’’ x 4.5’’ ( 254mm x 114.3 )
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
|
12V DC performance specs (first layer of drum) |
|||
|
Line Pull |
Line Speed |
Motor |
Pull by layer |
|
0 |
43.3(13.2) |
70 amps |
1/12,000 (5450) |
|
2000 (910) |
11.5 (3.5) |
130 amps |
2/9800 (4450) |
|
4000 (1810) |
9.2(2.8) |
170amps |
3/8300 (3770) |
|
6000 (2720) |
7.9 (2.4) |
220amps |
4/7200 (3270) |
|
8000 (3630) |
6.9 (2.1) |
265 amps |
|
|
10000 (4540) |
5.6 (1.7) |
320 amps |
|
|
12000 (5450) |
4.6 (1.4) |
390 amps |
|
|
Carbon Winch 12k – Package contents included in purchase price |
||
|
Description |
Quantity |
Comment |
|
Carbon Winch CW-12K |
1 |
24x10mm Synthetic Dyneema Rope |
|
Control box 500amp |
1 |
1pc 500A solenoid and battery cables + wireless remote 1 x long black battery cable |
|
Hand remote control – |
Plug in |
|
|
CNC Billet Black Plate Hawse Fairlead |
Laser Etched Carbon Winches Fairlead |
|
|
Hardware bag |
6sets |
4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead to winch mounts. |
|
Owners Manual |
1pc |
|
|
Carbon Winch Hook |
1pc |
|
|
Red Hook strap |
1pc |
|
|
Isolator |
1pc |
Included |
(CW-12K-V2)
| SKU | CW-12K-V2 |
| Brand | Carbon Winch |
| Shipping Weight | 31.0000kg |
| Shipping Width | 0.370m |
| Shipping Height | 0.250m |
| Shipping Length | 0.615m |
| Shipping Cubic | 0.056887500m3 |
